Welcome to the ultimate guide on one of the most essential, yet often overlooked, aspects of construction: formwork. You might have seen wooden or metal panels at a building site and wondered about their purpose. That’s what we’re here to discuss—the world of shuttering and shuttering. This process is the temporary skeleton that gives concrete its shape, acting as a mold until the concrete hardens and can support itself. Without proper formwork, our modern buildings, bridges, and foundations simply couldn’t exist as we know them. From towering skyscrapers to a simple backyard patio, the principles of shuttering are fundamental.
This article will walk you through everything you need to know. We’ll explore what shuttering is, the different materials used, and how it’s all put together. We’ll also cover critical safety measures, how to estimate costs, and the pros and cons of tackling a project yourself versus hiring a professional. Whether you’re a budding builder, a homeowner planning a project, or just curious about how our concrete world takes shape, this guide will provide a solid foundation of knowledge.
Key Takeaways
- Shuttering is a temporary mold used in construction to contain and shape wet concrete until it cures and becomes self-supporting.
- Common materials include timber, plywood, steel, aluminum, and plastic, each with its own advantages for different types of projects.
- The process involves several key stages: planning, assembling the formwork, pouring the concrete, allowing it to cure, and finally, stripping the shuttering away.
- Safety is paramount. Always use personal protective equipment (PPE), ensure the structure is properly braced, and inspect the formwork before and during the concrete pour.
- Sustainability is a growing trend, with reusable modular systems becoming more popular to reduce waste and long-term costs.
- Proper planning is crucial to avoid common mistakes like bulges, leaks, or collapses, which can compromise the entire structure.
What Exactly Is Shuttering in Construction?
In the simplest terms, shuttering is a temporary structure used in construction to act as a mold for fresh concrete. Think of it like a cake pan. You pour the batter (wet concrete) into the pan (the shuttering), and it holds the batter in the desired shape while it bakes (cures). Once the cake is firm, you remove the pan. Similarly, once the concrete has hardened and gained enough strength to stand on its own, the shuttering is removed, or “stripped.” This process is also widely known as formwork. The quality of the final concrete structure—its shape, surface finish, and structural integrity—depends heavily on the quality of the formwork. Poorly constructed shuttering and shuttering can lead to bulges, leaks, or even a total collapse, which is both dangerous and expensive. Therefore, a well-designed and sturdy shuttering system is absolutely critical for any successful concrete project, from a small residential foundation to a massive commercial building. It must be strong enough to withstand the immense pressure of the wet concrete and any other loads during the construction process.
Common Types of Shuttering and Shuttering Materials
The material you choose for your formwork depends on the project’s scale, budget, and the desired finish of the concrete. Different materials offer unique benefits in terms of cost, reusability, and ease of use. For instance, a small DIY project might only require basic timber, while a large-scale commercial project would benefit from the durability and reusability of steel.
Timber and Plywood Shuttering
Timber has been the traditional choice for formwork for centuries, and for good reason. It is lightweight, easy to cut and assemble on-site, and relatively inexpensive for small, one-off projects. Planks of wood can be nailed together to create molds for beams, columns, and slabs. However, raw timber can absorb water from the concrete, potentially affecting the curing process. It also has a limited lifespan and can be prone to warping. Plywood is a popular upgrade from simple timber planks. A special type called film-faced plywood is often used for shuttering and shuttering because its waterproof coating provides a smooth finish to the concrete and prevents it from sticking. Plywood panels are larger than timber planks, which speeds up assembly time. While more expensive than basic timber, plywood offers better reusability and a superior surface finish, making it a great middle-ground option for many residential and light commercial jobs.

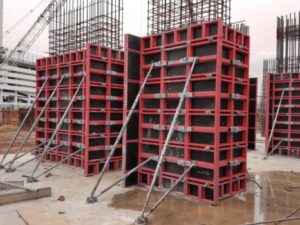

Steel and Aluminum Systems
When a project demands high strength, precision, and multiple reuses, steel shuttering is the preferred choice. Steel forms are incredibly durable, capable of being used hundreds of times before needing replacement. This makes them very cost-effective for large projects or for constructing repetitive elements like columns or walls in a high-rise building. Steel provides an exceptionally smooth and uniform finish on the concrete, reducing the need for additional plastering. However, steel is heavy, requiring cranes for lifting and placement, and its initial cost is high. Aluminum shuttering offers a fantastic alternative. It shares many of the benefits of steel—durability, reusability, and a great finish—but is significantly lighter. This makes it easier to handle and assemble by hand, reducing labor costs and the need for heavy machinery. Aluminum formwork is often used in residential construction for its speed and efficiency, especially for creating entire wall and slab systems in a single pour.
Modern Plastic Shuttering
Plastic shuttering is a relatively new but rapidly growing option in the construction industry. Made from durable, lightweight plastics, these interlocking panels are incredibly easy to handle, transport, and assemble. They are perfect for small to medium-sized projects, including foundations, walls, and columns. A major advantage of plastic is that it’s completely waterproof, so it doesn’t absorb moisture from the concrete, ensuring a proper cure. Concrete doesn’t stick to plastic, making stripping simple and cleaning effortless—often just with a quick spray of water. This ease of maintenance and its high reusability (often over 100 times) make plastic a very sustainable and economical choice over the long term. While the initial investment might be higher than timber, the savings in labor, cleaning, and replacement costs can be substantial. The lightweight nature of plastic also enhances on-site safety by reducing the physical strain on workers.
The Key Components of a Shuttering System
A shuttering system isn’t just a few panels nailed together; it’s an engineered assembly of several components working in unison to hold wet concrete in place. Understanding these parts is essential for building safe and effective formwork. The main elements are the sheathing, the supporting members, and the hardware that holds it all together.
Sheathing, Studs, and Wales
The sheathing is the surface that comes into direct contact with the concrete. It’s what gives the final concrete structure its shape and finish. Sheathing can be made of plywood, steel panels, plastic, or timber planks. The choice of sheathing material directly impacts the smoothness of the concrete surface. Behind the sheathing are vertical supports called studs. These studs reinforce the sheathing and prevent it from bulging under the immense outward pressure of the wet concrete. The spacing of the studs is critical; if they are too far apart, the sheathing will bend, resulting in a distorted concrete surface. Supporting the studs are horizontal members called wales (or walers). Wales run perpendicular to the studs and serve to align the entire formwork assembly and transfer the load to the ties and braces that hold the opposite sides of the form together. Think of it as a skeleton: the sheathing is the skin, the studs are the small bones, and the wales are the larger bones providing the main structure.
Ties, Braces, and Other Hardware
To keep the formwork from spreading apart, ties are used. These are steel rods or bands that pass through the formwork from one side to the other, essentially holding the two faces of the mold together against the concrete pressure. Cones or other devices are often used on the ends of the ties to ensure they can be removed cleanly after the concrete has set, leaving small, easily patched holes. The entire shuttering and shuttering assembly must be held in a stable, plumb (perfectly vertical) position. This is where braces come in. Braces are diagonal supports that are anchored to the ground or another solid structure. They push against the formwork to prevent it from tilting or shifting during the concrete pour. Adjustable turnbuckles are often incorporated into the braces to allow for fine-tuning the alignment of the forms before the pour. Other essential hardware includes clamps, wedges, and clips that connect panels and secure the different components tightly together, ensuring a leak-proof and rigid mold.
The Shuttering and Shuttering Process: A Step-by-Step Overview
Building with concrete is a multi-stage process, and the formwork phase is one of the most hands-on parts. From initial drawings to the final stripping, each step must be executed with precision to ensure a successful outcome. The process can be broken down into four main stages: planning, assembly, pouring and curing, and finally, stripping.
Stage 1: Planning and Design
Before a single piece of formwork is put in place, meticulous planning is required. This phase involves creating detailed drawings that specify the dimensions of the concrete element, the type of shuttering material to be used, and the exact placement of all components, including sheathing, studs, wales, ties, and braces. Engineers calculate the pressure the wet concrete will exert on the forms to ensure the design is strong enough to withstand it without failing. A good plan also considers the sequence of assembly and disassembly to make the process efficient and safe. This is also the stage where you estimate the materials needed and create a budget. For complex projects, this planning phase is often done with specialized software. Proper planning is the foundation of a good shuttering and shuttering job; skipping this step almost always leads to costly and dangerous problems down the line.
Stage 2: Assembly and Erection
Once the plan is finalized, the on-site assembly begins. Workers start by laying out the footprint of the structure and setting the first layer of formwork in place. The sheathing panels are positioned and connected, followed by the installation of the vertical studs and horizontal wales. Ties are inserted to connect opposite sides of the form, and the entire structure is carefully aligned and plumbed. Diagonal braces are then fixed to the ground and the formwork to provide stability and prevent any movement during the concrete pour. A crucial part of this stage is applying a release agent to the interior faces of the sheathing. This oil-based substance prevents the concrete from bonding to the formwork, ensuring a smooth surface finish and making the stripping process much easier. Every connection is double-checked for tightness and stability before moving to the next stage.
Stage 3: Pouring Concrete and Curing
This is the moment of truth for the shuttering system. Concrete is pumped or poured into the assembled mold. This must be done carefully and in a controlled manner. Pouring too quickly can create excessive pressure that might cause the formwork to bulge or even burst. The concrete is typically poured in layers (called lifts), and each layer is vibrated to remove any trapped air bubbles. These air pockets can create voids, or “honeycombing,” which weakens the structure and leaves a poor surface finish. During the pour, the formwork is continuously monitored for any signs of leakage, bulging, or shifting. If any issues are detected, the pour must be stopped immediately so that reinforcements can be added. After the pour is complete, the curing process begins. Curing is a chemical reaction, not just drying, where the concrete hardens and gains strength. The formwork protects the young concrete from drying out too quickly and from temperature extremes.
Stage 4: Stripping the Formwork
The final step is the removal, or “stripping,” of the shuttering. This can only be done after the concrete has reached a sufficient strength to support its own weight and any construction loads that may be placed on it. The time required for this varies depending on the type of concrete mix, the size of the structure, and the ambient temperature. For example, the vertical forms for walls and columns can often be stripped within 24 to 48 hours, as they are not supporting a direct load. However, the shuttering supporting a horizontal slab or beam (known as shoring) must remain in place for much longer, sometimes for several weeks, until the concrete reaches its full design strength. The stripping process must be done carefully to avoid damaging the fresh concrete edges and corners. After removal, the formwork components are cleaned of any residual concrete and stored properly for future use.
Comparing Shuttering Materials and Methods
Choosing the right shuttering system is a balancing act between cost, labor, project requirements, and desired finish. There is no one-size-fits-all solution. Below is a table comparing the most common materials to help guide your decision.
|
Material |
Initial Cost |
Reusability |
Labor Intensity |
Concrete Finish |
Best For |
|---|---|---|---|---|---|
|
Timber |
Low |
Low (1-5 uses) |
High |
Fair to Good |
Small, non-repetitive, DIY projects; complex shapes. |
|
Plywood |
Medium |
Medium (10-25 uses) |
Medium |
Good to Very Good |
Residential and light commercial; walls and slabs. |
|
Steel |
High |
Very High (100+ uses) |
Low (heavy machinery) |
Excellent |
Large-scale projects, high-rises, repetitive elements. |
|
Aluminum |
High |
High (100+ uses) |
Low (manual) |
Excellent |
Residential construction, fast-paced projects. |
|
Plastic |
Medium-High |
High (100+ uses) |
Very Low (manual) |
Very Good |
Small to medium projects; foundations, walls, columns. |
As you can see, traditional shuttering and shuttering with timber is cost-effective upfront but falls short on reusability. Steel and aluminum are significant investments but pay for themselves on large or repetitive jobs. Plastic offers a modern, balanced approach with its lightweight nature and high reusability, making it an attractive option for a wide range of applications.
Essential Safety Practices for Shuttering Work
Working with shuttering and fresh concrete involves significant risks. The weight of the concrete is immense—a cubic yard weighs nearly 4,000 pounds! A formwork collapse can be catastrophic, leading to serious injuries or fatalities. Therefore, adhering to strict safety protocols is non-negotiable. The first rule is to always wear appropriate Personal Protective Equipment (PPE), including a hard hat, steel-toed boots, gloves, and safety glasses. Before any concrete is poured, a competent person must thoroughly inspect the entire formwork system. This includes checking that all connections are secure, braces are firmly in place, and the foundation beneath the shuttering is stable and can support the load. During the pour, workers should never stand under the formwork, and access to the immediate area should be restricted. Constant monitoring is key. Look for any signs of distress, such as bending wales, leaking joints, or shifting braces. Having a clear emergency plan in place is also essential in case something goes wrong.
Tools of the Trade for Formwork
Having the right tools is essential for building strong and accurate formwork efficiently. For traditional timber or plywood shuttering, your toolkit should include a reliable circular saw for cutting panels and lumber, a power drill for fastening screws, and a quality hammer for adjustments and nailing. A measuring tape, a level, and a plumb bob are absolutely critical for ensuring your forms are square, level, and perfectly vertical. A chalk line is also handy for snapping straight lines over long distances. For modular systems like steel or aluminum, specialized clamps, pins, and wedges are used to connect the panels, and these are typically provided by the manufacturer. Regardless of the system, wrenches are needed for tightening ties and adjusting braces. When it’s time for stripping, pry bars and wrecking bars are used to gently separate the forms from the hardened concrete. Proper maintenance of these tools will ensure they perform correctly and safely on every job.
DIY Shuttering vs. Hiring a Professional
For small, simple projects like a garden retaining wall or a small patio slab, a determined DIYer with good research and careful planning can often successfully build their own formwork. Using timber and plywood is generally the most accessible approach for a home project. However, the risks should not be underestimated. The forces involved are powerful, and a mistake can lead to a lopsided, ugly, or even failed structure. For anything larger or more complex—such as a house foundation, a second-story slab, or tall walls—hiring a professional is almost always the right decision. Professionals have the experience, the specialized equipment (like modular systems), and the engineering knowledge to design formwork that is both safe and efficient. They understand local building codes and can ensure the job is done right the first time. While it may seem like you’re saving money by doing it yourself, a formwork failure can end up costing far more in repairs and materials than hiring an expert would have from the start.
Understanding US Building Codes for Formwork
While this article is not a substitute for legal advice or a certified engineer, it’s important to be aware that construction, including formwork, is regulated by building codes. In the United States, these codes are often based on standards set by organizations like the American Concrete Institute (ACI), specifically ACI 347, Guide to Formwork for Concrete. These codes provide minimum requirements for the design, construction, and safety of shuttering and shuttering. They specify things like the loads the formwork must be designed to withstand, requirements for shoring and reshoring (the temporary supports for slabs), and procedures for inspection. Local city or county building departments adopt and sometimes amend these codes. Before starting any significant concrete project, you or your contractor must check with your local building authority to understand the specific requirements and to see if a permit is needed. Compliance isn’t just about following rules; it’s about ensuring the safety and long-term durability of your project.
Sustainability and Innovations in Shuttering
The construction industry is increasingly focused on sustainability, and formwork is no exception. Traditional timber shuttering creates a significant amount of waste, as the wood can often only be used a few times before it’s discarded. This is where modern reusable systems shine. Steel, aluminum, and plastic formwork can be used hundreds of times, drastically reducing job site waste and the demand for virgin materials. This trend towards reusability is a core principle of green building.
Looking ahead, innovation continues to shape the future of shuttering and shuttering. Modular systems are becoming “smarter,” with integrated sensors that can monitor concrete pressure and temperature in real-time. This data helps ensure safety and optimize the curing process. Another exciting frontier is 3D-printed formwork. Using large-scale 3D printers, contractors can create highly complex and customized molds directly on-site. This technology has the potential to revolutionize architectural design, allowing for organic shapes and intricate patterns that would be incredibly difficult or expensive to build with traditional methods. As technology evolves, formwork will continue to become more efficient, safer, and more sustainable. This is an area with constant development, as noted in various industry publications; some insights can be found by looking into how tech trends are covered in publications like those you might find referenced on a site such as https://siliconvalleytime.co.uk/.
Conclusion
From holding the shape of a simple sidewalk to enabling the construction of monumental bridges, shuttering and shuttering is the unsung hero of the concrete world. It is a craft that blends careful engineering with hands-on construction skill. We’ve journeyed through its core principles, from the basic definition and materials to the detailed processes and safety protocols that govern its use. We’ve seen how timber, steel, and modern plastics each play a role and how innovations are pushing the industry toward greater sustainability and efficiency. Whether you are planning a project of your own or are simply fascinated by the built environment around you, understanding the fundamentals of formwork gives you a new appreciation for the strength and precision required to shape our world. The next time you see a construction site, you’ll know that those temporary panels are the critical molds that turn liquid stone into a lasting structure.
Frequently Asked Questions (FAQ)
1. What is the main difference between shuttering and formwork?
In practice, the terms “shuttering” and “formwork” are often used interchangeably. Historically, “shuttering” specifically referred to the use of timber planks to form molds, while “formwork” was a broader term for the entire temporary structure. Today, most professionals use them to mean the same thing: the temporary mold used to contain and shape wet concrete.
2. How long do you leave shuttering on concrete?
The time depends on the type of concrete element and the curing conditions. Vertical forms for walls and columns, which are not load-bearing, can often be stripped in 24-48 hours. However, the horizontal formwork (shoring) supporting slabs and beams must stay in place much longer—from 7 to 28 days or more—until the concrete has gained sufficient strength to support itself.
3. What happens if you remove formwork too early?
Removing formwork too early is extremely dangerous. If the concrete has not cured enough, it can lead to several problems. The structure might sag or deflect under its own weight, corners and edges could crack or break off, and in the worst-case scenario, the entire structure could collapse.
4. What is a formwork release agent?
A release agent is a chemical (usually an oil- or wax-based liquid) that is applied to the interior surface of the formwork before the concrete is poured. It creates a barrier that prevents the concrete from sticking to the mold, which makes the stripping process easier and results in a cleaner, smoother concrete surface.
5. Can I reuse plywood for shuttering?
Yes, plywood can be reused, especially film-faced plywood designed for formwork. The number of reuses depends on the quality of the plywood and how carefully it is handled, stripped, and cleaned. With proper care, you can typically get between 10 and 25 uses out of a good-quality plywood panel.
6. What is “honeycombing” in concrete?
Honeycombing refers to voids or pockets on the surface of the concrete, giving it a rocky, uneven appearance. It is caused by the mortar not completely filling the spaces between the coarse aggregate stones. This is often a result of an improper concrete mix, not enough vibration during the pour, or leaks in the formwork.
7. Why is bracing so important for shuttering?
Bracing is critical for stability. Diagonal braces support the formwork and prevent it from tilting, shifting, or collapsing under the pressure of the wet concrete and other construction forces like wind. Proper bracing ensures the final structure is plumb, straight, and in the correct position.
8. What is the most sustainable shuttering option?
Reusable systems like steel, aluminum, and plastic are far more sustainable than traditional single-use or low-reuse timber formwork. By being used hundreds of times, they significantly reduce job site waste and the consumption of natural resources, making them a much greener choice for construction.
